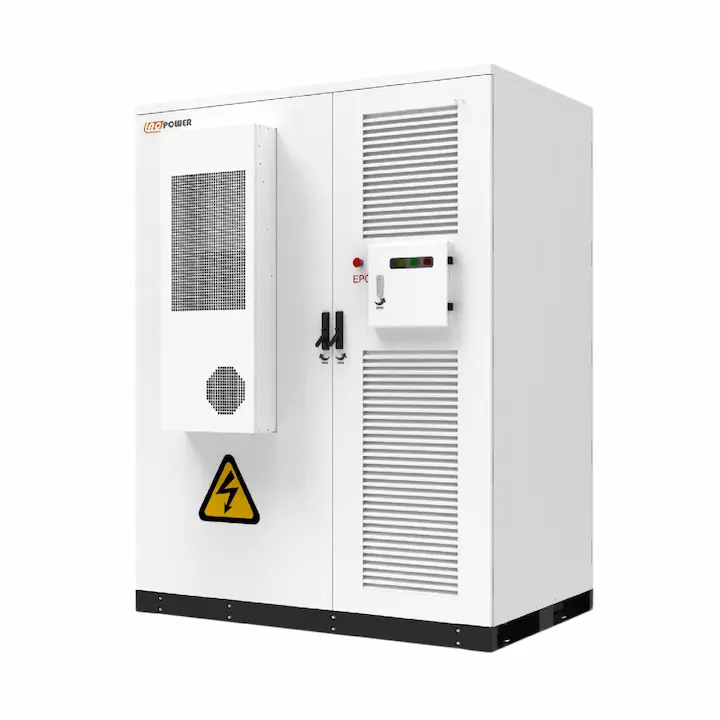

eBASE 125KW/261KWH C&I
Model: SH125KB261K-EU
EU Industrial & Commercial Energy Storage System 261kWh Lithium Ion Battery With Fire Protection System.
Support on-grid and off-grid systems.
Equipped with fire protection system.
The electrodes and busbars are designed with plastic slots to prevent leakage.
Built-in air-conditioning, balanced temperature.
Multiple protection.
Technical Specifications
| PRODUCT NAME | eBASE 125KW/261KWH C&I |
| PRODUCT MODEL | SH125KB261K-EU |
| General Specifications | |
| Rated Power | 188KW |
| Rated Current | 271A |
| Allowable Grid Voltage | 400Vac(-20~15%) |
| Rated Grid Frequency | 50/60Hz |
| Power Factor | -1(ahead) to 1(Iag ging) |
| THDI | <3%(rated output power) |
| Access Method | Three-phase Four-wire |
| PV Parameters | |
| Input Voltage Range | 250~850Vdc |
| Rated Power | 120KW |
| Maximum Input Current | 200Hz |
| Short-circuit Current | 220A |
| Battery Parameters | |
| Battery System Capacity | 261KWh |
| Cell | LFP-3.2V-314Ah |
| Battery System Configuration | 1P260S |
| Rated Charge/Discharge Ratio | 0.5C@25℃ |
| Voltage Range | 728~936VDC |
| Diesel Generation Parameters | |
| Rated Power | 0~120kVA |
| Ac Off-grid Voltage | 400Vac(-20~15%) |
| Maximum Alternating Current | 181A |
| System Parameters | |
| Maximum Efficiency | ≥86% |
| AirConditioning Power | 3kW(cooling),2.5kW(heating) |
| Communication | Ethernet/WIFI/4G |
| Overvoltage Protection | DC Type ll/AC Type ll |
| Fire Protection System | Aerosol |
| Dimensions(L*W*H) | 1800*1300*2200mm |
| Weight | 3.1t |
| Anti-corrosion Grade | C3 |
| Discharge Temperature | 0~50℃ |
| Charge Temperature | -15~50℃ |
| Environmental Humidity | RH≤95% |
| Working Altitude | ≤2000m |
| Protection Grade | IP54 |
| Cooing Method | Intelligent air cooling |
| Certification | IEC62619,UN38.3,IEC 62477,IEC61000 |
Product datasheet
