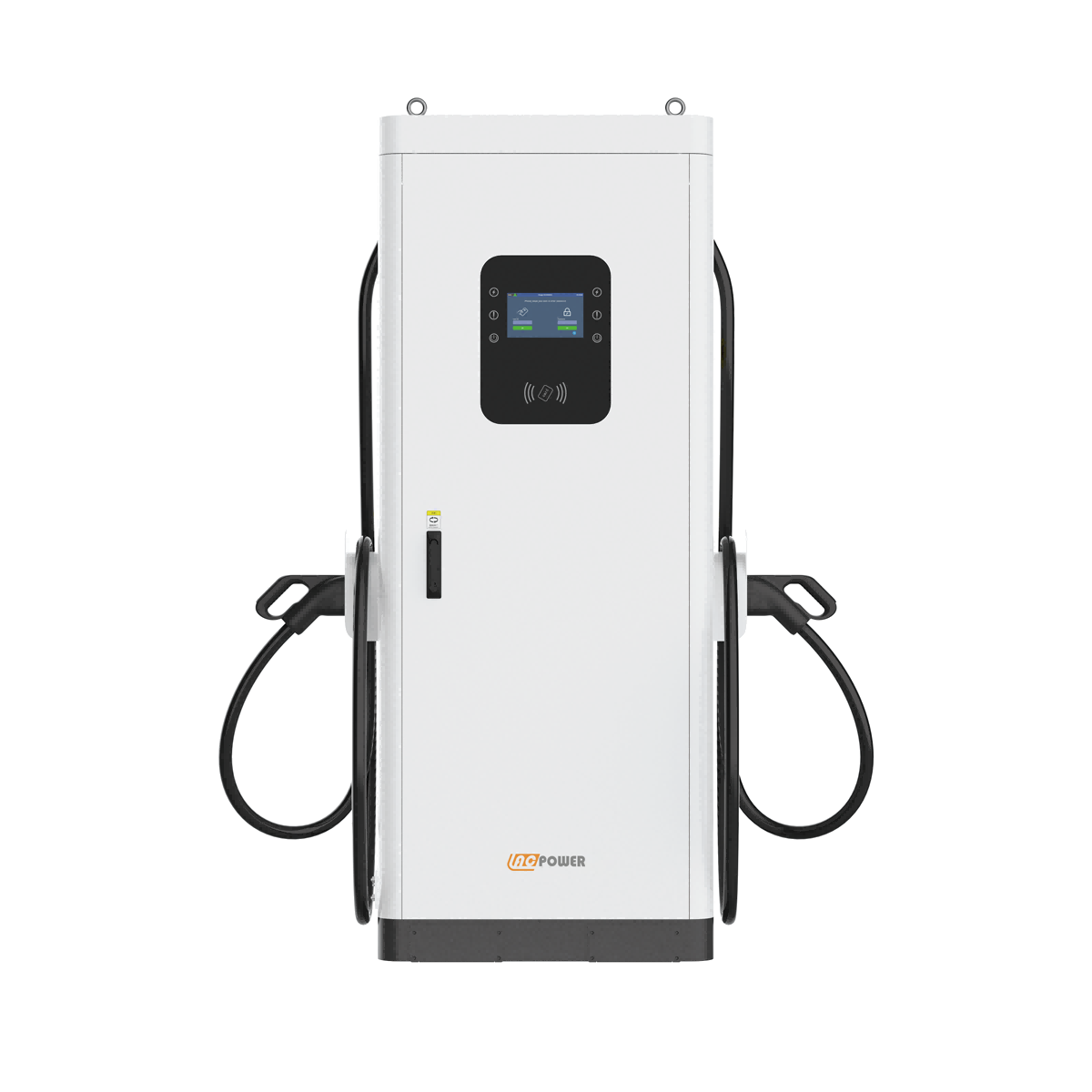

480kW DC Charger
Model: LC-DC480K-US
Commercial 480kW DC Fast EV Charger CCS1 CCS2 OCPP 1.6J High Power Electric Vehicle Charging Station for Public and Fleet Use
Dual connectors
• Two connectors, output up to 240kW
• Constant power from 300~1000V
Intelligent
• Ethernet/4G/WiFi supported
• OCPP protocol,operation by App
Flexible Option
• App/RFID /Plug &Play
• Optional POS terminal support credit card
Secure And Safe
• Type A RCD for residual current protection
• Support feature of Plug & Charge
Technical Specifications
| PRODUCT NAME | 480kW DC Charger |
| PRODUCT TYPE | LC-DC480K-US |
| General Specifications | |
| Input Voltage | 400Vac/480Vac(3P+N+PE) |
| Input Frequency | 50/60Hz |
| Output Voltage | 200~1000Vdc(Constant power 300~1000Vdc) |
| Max.Power(Power Cabinet) | 480kW |
| Max.Charging Ports | Support 2 charging guns Max. |
| Charger Cable | 5M default,customize support |
| Connector Type | CCS1|CCS2|CHAdeMO|GBT|NACS |
| Connector(Air-cooled) | CCS1-200A|CCS2-200A|CHAdeMO-150A|GBT-250A|NACS-200A |
| Connector(Liquid-cooled) | CCS2-500A|GBT-800A|GBT-600A|GBT-400A |
| Power Module Options | 40kW per module default |
| Power Module Numbers | 12pcs MAX |
| Output Current Per Module | 134A MAX(300Vdc) |
| Efficiency | ≥94% at nominal output power |
| Power Factor | >0.98 |
| Safety Protection | Over voltage protection,lightning protection,over current protection,leakage protection,waterproof protection,etc |
| Certification | GB/T,CCS2,CCS1,CHAdeMo,NACS |
| Emergency | Emergency stop button disables output power |
| Product Function | |
| Communication Protocol | OCPP 1.6J(2.0J optional) |
| Network Connection | Ethernet default,WIFI 4G optional |
| Display | 7 inch color display screen(optional) with linux system |
| Start Charing Mode | Plug&play,RFID,credit card or APP |
| RFID Standard | ISO/IEC14443A/B |
| Work Environment | |
| Cooling Method | Forced air cooing |
| Operating Temperature | -30~55C |
| Working Humidity | ≤95%(non-condensing) |
| Storage Humidity | ≤99%(non-condensing) |
| Altitude | 2000m |
| IP Grade | IP54 |
| Dimensions(L*W*H) | 900*700*1900mm |
| Gross Weight | 440kg |
